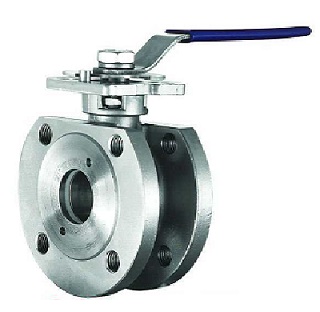

Hiton Valve Co.,Ltd.

• Live-Loaded Stem Packing
  Provides constant load on the stem seal and extends service life
• Blow-Out-Proof Stem
  Stem is bottom loaded to prevent removal when valve is in service
• Anti-Static Device for Ball-Stem-Boty
• Pressure Balance Hole in Ball Slot
• 2 Belleville Washer to Self-adjust Packing
• ISO 5211 Direct Mounting Pad for easy automation


• Temperature Range:-20℃ to 190℃
• Maximum Working Pressure: 10K/150LB
• Working Medium: Water, Oil, Gas, Acid, etc
• Flange End:ASME B16.5 ,CLASS 150/300,DIN PN10-40,JIS B2220 10K/20K
• Design: ANSI/ASME B16.34
• Inspection&Testing: API 598,BS EN 12266

2) PRODUCT DESIGN DRAWING:

3) PARTS MATERIAL:
