Stainless Steel 1PC Threaded Ball Valve
Product Name:

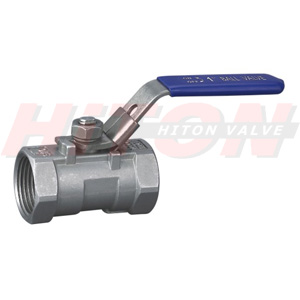

Stainless Steel 1PC Threaded Ball Valve
:
:
:


1-PC Stainless Steel Ball Valve, Reduce Port, 1000WOG, PN63

1) DESCRIPTION:
Features and Benefits:
· 1-Piece Design
· Blow-Out-Proof Stem
Stem is bottom loaded to prevent removal during operation
· Locking Device
Enables plant personnel to secure valve in open or closed position when manually operated
· Corrosion Resistant
Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life
· Investment Cast
Improves dimensional control and reduces porosity
· Pressure Blance Hole in Ball Slot
· Reduce Port
· NACE MR 0175
 Operating / Test Conditions:
· Temperature Range: -20℃ to 190℃
· Maximum Working Pressure:
1000W.O.G
· Working Medium: Water, Oil, Gas, Acid, etc
· Size:1/4”-2”
· Design:ASME B16.34
· Inspection&Testing:API 598
· Pipe thread:ANSI B1.20.1,BS21/2779,DIN 259/2999,ISO228-1
Options
· Body Material:ASTMA351-CF8M,CF8,
·             CF3M,CF3
·            ASTM A216-WCB


2) PRODUCT DESIGN DRAWING:


3) PARTS MATERIAL:


4) SIZES:
