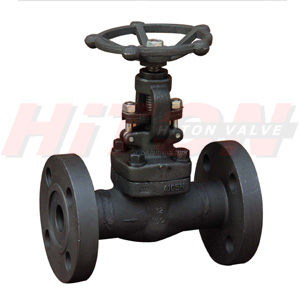

Forged Globe Valve 800Lb Information：

Port size: 1/4"-2"
Pressure:150LB-800LB
Matetial:Carbon,stainless steel 304 316 ,Alloy steel and other material.
Work Temp.:-196℃~500℃
Flange ends: ANSI B 16.5

1. BB-bolt bonnet
2. OS&Y - outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet & Body
5. Graphite stem packing
6. Socket welding: ANSI B16.11
    Screw ends: ANSI B1.20.1
    Butt welding: ANSI B16.25
7. Forged Steel Gate Valves conform to API 602, BS5352 and ASME B 16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.
