Product Name:

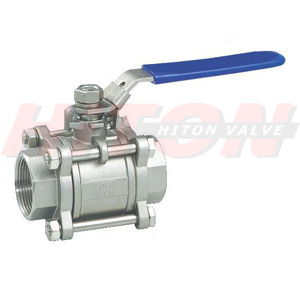

3PC Threaded Ball Valve
:
:
:



3-PC Stainless Steel Ball Valve, Full Port, 1000WOG (PN63) Light Duty


1) DESCRIPTION:


Features and Benefits:
  • High-Cycle, Live-Loaded Stem Packing
    Dynamic loading on stem packing ensures a tight seal through varying pressure and temperature conditions, reducing maintenance costs and extending service life
  • Full Port Design
    Improves flow resulting in increased process efficienciesl
  • 3-Piece Construction
    Easy to repair
  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service
  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated
  • Investment Cast
    Improves dimensional control and reduces porosity
  • Pressure Blance Hole in Ball Slot
  • Anti-Static Device for Ball-Stem-Body
Operating / Test Conditions:
  • Temperature Range: -20 to 190Maximum Working Pressure:
    1000 PSI WOG
  • Working Medium: Water, Oil, Gas, Acid, etc
  • Design: ANSI/ASME B16.34
  • Inspection&Testing: API 598
  • End connections:  All to B16.34; NPT to B1.20.1; socket weld to B16.11; butt weld to B16.25; flanged to B16.5

Options:
  • End connections available in NPT, socket weld, Sch. 5/10/40 butt weld, and ANSI Class 150 and 300 flanged in SS316,SS304 or carbon steel WCB
  • Body Material:ASTMA351-CF8M,CF8,
  • CF3M,CF3
  • ASTM A216-WCB


2) PRODUCT DESIGN DRAWING:





3) PARTS MATERIAL:




4) SIZES:
