2PC Flanged Ball Valve 150#
Product Name:

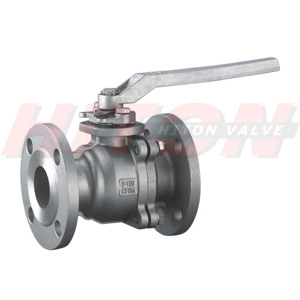

2PC Flanged Ball Valve 150#
:
:
:

2PC Ball Valve Flanged End,150LB/10K/PN16

1) DESCRIPTION:

Features and Benefits:
  • Full Port Design
    Full port construction improves flow characteristics for greater process efficiencies
  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service
  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated
  • Live-Loaded Stem Packing
    Provides constant load on the stem seal and extends service life
  • Corrosion Resistant
    Made of 316 stainless steel (A351 Gr. CF8M) for greater chemical resistance and longer service life
  • ISO 5211 Mounting Pad
  • Anti-Static Device for Ball-Stem-Body
  • Pressure Blance Hole in Ball Slot
  • 2 Belleville Washer to Self-adjust Packing
  • Fire safety Design
Operating / Test Conditions:
  • Temperature Range: -20℃ to 190℃
  • Maximum Working Pressure: ANSI 150: 275 PSI WOG
  • Working Medium: Water, Oil, Gas, Acid, etc
  • Design: ANSI/ASME B16.34,EN 12516-1
  • Inspection&Testing:API 598,EN 12266
  • Length to ANSI B16.10
    Flange connection to ANSI B16.5

Options
  • Pneumatic Actuator
  • Body Material:ASTM A351-CF8M,CF8,
  • CF3M,CF3
  • ASTM A216-WCB

2) PRODUCT DESIGN DRAWING:



3) PARTS MATERIAL:

4) SIZES:
