2PC Flanged Ball Valve with ISO5211 Direct Mounting Pad
Product Name:

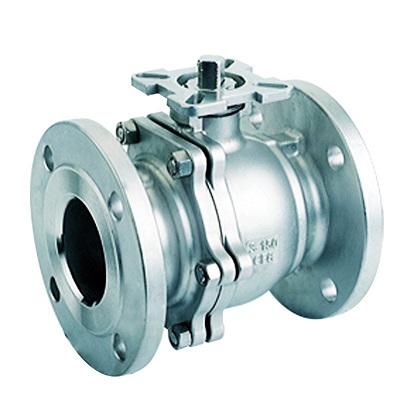

2PC Flanged Ball Valve with ISO5211 Direct Mounting Pad
:
:
:

2-PC DIN Standard Stainless Steel Ball Valve,Full Port ,Flanged End, With ISO5211-Direct Mounting Pad  150#/300#


1) DESCRIPTION:

Features and Benefits:
  • Full Port Design
    Full port construction improves flow characteristics for greater process efficiencies
  • Blow-Out-Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service
  • Locking Device
    Enables plant personnel to secure valve in open or closed position when manually operated
  • Live-Loaded Stem Packing
    Provides constant load on the stem seal and extends service life
  • ISO 5211 Direct Mounting Pad
  • Anti-Static Device for Ball-Stem-Body
  • Pressure Blance Hole in Ball Slot
  • 2 Belleville Washer to Self-adjust Packing
  • Fire safety Design



2) PRODUCT DESIGN DRAWING:

3) PARTS MATERIAL:



4) SIZES:
