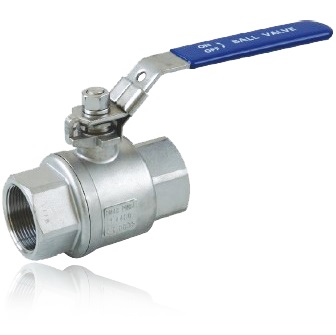

• 2-Piece DIN Standard Design
• Full Port
  Full port construction improves flow characteristics for greater process efficiencies
• Blow-Out-Proof Stem
  Stem is bottom loaded to prevent removal when valve is in service
• Live-Loaded Stem Packing
  Provides constant load on the stem seal and extends service life
• Locking Device
  Enables plant personnel to secure valve in open or closed position when manually operated
• Corrosion Resistant
  Made of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life
• Investment Cast Body
  Improves dimensional control and reduces porosity
• Pressure Blance Hole in Ball Slot



• Temperature Range: -20℃ to 190℃
• Maximum Working Pressure:
  2000 W.O.G
• Working Medium: Water, Oil, Gas, Acid, etc
• Design: ANSI/ASME B16.34
• Inspection&Testing:API 598
• Pipe thread:ANSI B1.20.1,BS21/2779,DIN 259/2999,ISO228-1

• Body Material:1.4408,1.4308,1.0619



2) PRODUCT DESIGN DRAWING:
