Product Name:

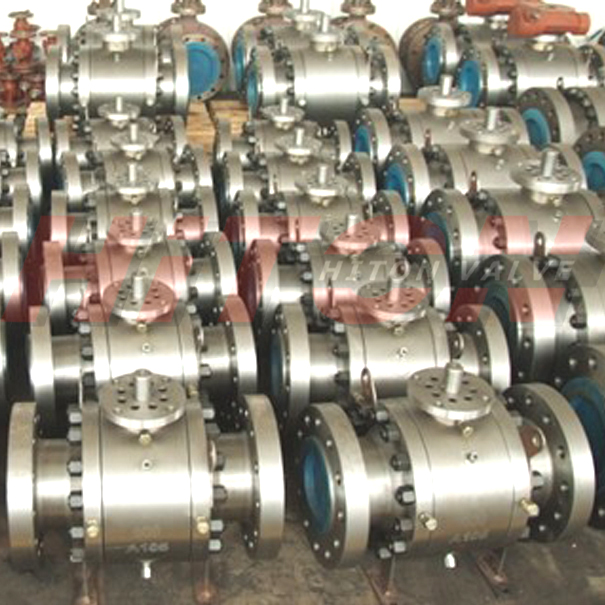

150lb-2500lb Trunnion Fire Safe Flanged Ball Valve

Features:
- Bi-directional shutoff
- Size range: 2" to 60"
- ANSI 150 to 2500
- API 2000 through 10000 standards
- Forged components to assure uniformity
- Heavy duty, maintenance free performance
- Compact design eliminates body flanges reducing overall size and leak paths
Applications:
- Gas transmission
- Products pipeline
- Measurements skids
- Dehydration systems
- Gas separation systems
- Natural gas storage
- Dryer service
- NGL plants
- NGL pipeline
- Compressor stations
- CO2 services
- Offshore
- Subsea
Standards:
- API 6D certified
- ASME/ANSI B16.10
- NACE MR 0175 compliance
- API 6FA
- Double block and bleed
Features and Benefits:
- ASME/ANSI B16.10
- API 6FA
- NACE MR 0175 compliance
- Wall thickness complies with B16.34.
- HITON's single seat ball valve has a flat spring set acting through a hard face bearing against the bottom ball shaft which provides sufficient initial ball-seat load for valve tightness, even at low psi.
- HITON's design provides freedom for thermal expansion of the ball without jamming even at high temperatures.
- Designed to ASME/ANSI B16.5, B16.10, B16.34, B31.1, B31.4 and B31.8 standards.
- All metal seated trunnion valves come standard with grease fittings
- Standard welded valve comes with standard with grease fittings (optional without grease fitting
